ESA describes desktop Production Tracer and mobile Smart Tracer tools for production and consumption reporting. They are separate solutions to scope with your control package.

Discuss your control requirements →

Understand the job beyond the cycle count.

Production reporting

Review production periods and order information to understand how the machine is being used.

Energy and job costing

With suitable measurement and setup, consumption can be associated with orders and individual pieces. Cost calculations also depend on the tariff and data entered.

Rollout requirements

Confirm licenses, measurement hardware, data retention, network security and user access. Personnel costing and mobile access require explicit agreement, not just an internet connection.

Inside the ESA brochure

Open an illustration at its original extracted size. These are manufacturer reference images, not photographs of a specific BENDRYX installation.

Production Tracer and energy reporting — ESA brochure illustration 1, spread 27 — Brochure spread 27 · Illustration 1
Open original image ↗

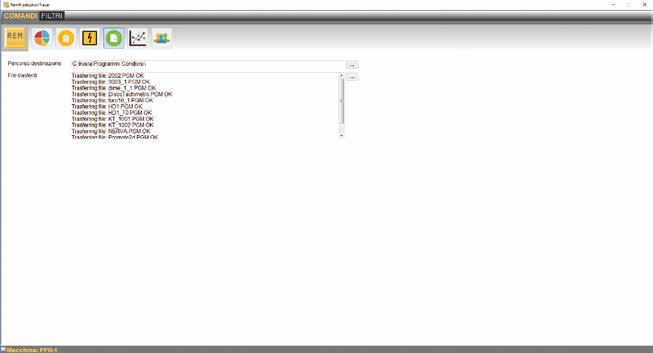

Production Tracer and energy reporting — ESA brochure illustration 2, spread 27 — Brochure spread 27 · Illustration 2
Open original image ↗

Production Tracer and energy reporting — ESA brochure illustration 3, spread 27 — Brochure spread 27 · Illustration 3
Open original image ↗

Production Tracer and energy reporting — ESA brochure illustration 4, spread 27 — Brochure spread 27 · Illustration 4
Open original image ↗

Production Tracer and energy reporting — ESA brochure illustration 5, spread 27 — Brochure spread 27 · Illustration 5
Open original image ↗

Production Tracer and energy reporting — ESA brochure illustration 6, spread 27 — Brochure spread 27 · Illustration 6
Open original image ↗

Production Tracer and energy reporting — ESA brochure illustration 7, spread 27 — Brochure spread 27 · Illustration 7
Open original image ↗

Production Tracer and energy reporting — ESA brochure illustration 8, spread 27 — Brochure spread 27 · Illustration 8
Open original image ↗

Production Tracer and energy reporting — ESA brochure illustration 9, spread 27 — Brochure spread 27 · Illustration 9
Open original image ↗

ESA manufacturer reference, not a guarantee of the equipment installed on any individual BENDRYX machine. The quotation determines rack, axis count, software licenses and accessories. ESA S840 W is our standard platform; other models and systems require application and availability confirmation.

Images and specification reference: ESA VIS-600/800 bending brochure (2024), printed pages 52–55. Manufacturer illustrations retain their original appearance. Published brochure values should be reconfirmed against the current supplied configuration.

Specify the complete bending workflow.

Tell us your machine, parts, gauging and programming requirements. We will confirm the control and options in your quotation.
