Separate screen and motion

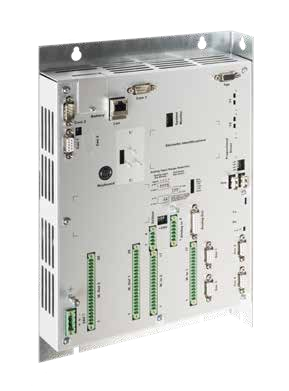

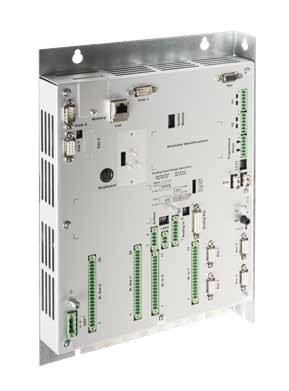

The W-series uses a PC-and-rack architecture. The brochure also shows S550N and S510 rack references; rack selection depends on drive and axis architecture.
ESA bending systems · Brochure guide
CNC racks and expansion
A display is only one part of a CNC system. The rack, I/O, fieldbus and software must be selected together for the actual press brake.
Match the electronics to the axes.
Connect the machine
CANopen, EtherCAT and I/O expansion support different integration requirements. Available interfaces are not a promise that every port or module is installed.
Count every controlled axis
Y1/Y2 ram axes and the X, R and Z gauging axes are separate channels. Share the exact backgauge layout, crowning and accessory requirements for an engineering review.
Inside the ESA brochure
Open an illustration at its original extracted size. These are manufacturer reference images, not photographs of a specific BENDRYX installation.
Open original image ↗
Open original image ↗
Open original image ↗
Open original image ↗
Open original image ↗
Open original image ↗
