Setup guidance
Illuminated positions indicate where the tooling should be placed for the programmed sequence.
ESA bending systems · Brochure guide
Bend Aid LED guidance
An LED bar links the CNC sequence to the tool station on the machine. It helps locate tooling and the next bend without replacing operator training or safeguarding.
Show the operator where to work.
Bend guidance
The LEDs identify the next working position while bending. This is process guidance, not a laser finger-protection device.
Installation choices
ESA describes a proprietary RS485 connection, fixed or modular lengths and 5 mm LED spacing. Confirm length, mounting and CNC compatibility.
Inside the ESA brochure

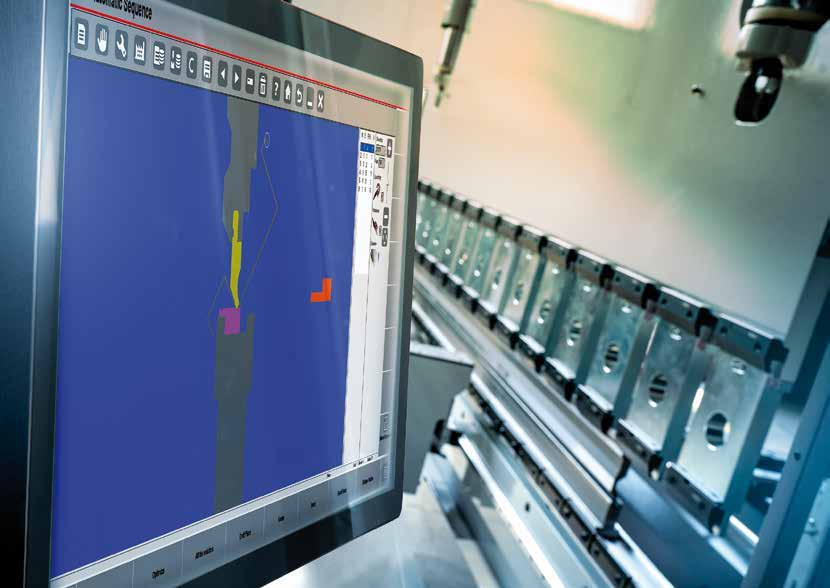

Open an illustration at its original extracted size. These are manufacturer reference images, not photographs of a specific BENDRYX installation.
Open original image ↗
Open original image ↗
Related guides
Explore ESA controllers → · Continue to offline programming →
ESA manufacturer reference, not a guarantee of the equipment installed on any individual BENDRYX machine. The quotation determines rack, axis count, software licenses and accessories. ESA S840 W is our standard platform; other models and systems require application and availability confirmation.
Images and specification reference: ESA VIS-600/800 bending brochure (2024), printed pages 24–25. Manufacturer illustrations retain their original appearance. Published brochure values should be reconfirmed against the current supplied configuration.
