Application summary
Material, thickness, bend length, radius, flange constraints, part mix and production target.
Confirms what the machine must doEvidence before slogans
Know what is being supplied before it arrives.
BENDRYX turns the machine purchase into a documented project: application inputs, final configuration, tooling interfaces, site requirements, acceptance checkpoints and production handoff.
The buyer record
Six records that make the project easier to verify.
The exact documents vary by machine and project. These are the core records BENDRYX uses to align the customer, applications team, factory and installation plan.
Configuration matrix
Model, force, working length, stroke, daylight, throat, CNC, axes, crowning and selected options.
Confirms what is being quotedTooling interface
Punch and die style, clamping, adapters, safety clamps and compatibility with retained tooling.
Reduces tooling surprisesSite-readiness record
Machine envelope, power, foundation, unloading, rigging, placement and access requirements.
Prepares the facilityAcceptance checklist
Configuration review, visible condition, motion, CNC, gauge, safety-device and sample-bend checkpoints.
Defines the handoff criteriaSupport handoff
Commissioning notes, operator familiarization, open items, contacts and applicable inspection records.
Creates an operating baselineConfiguration transparency
Name the systems—not just the machine colour.
A useful quotation identifies the controls, positioning, tooling interface and safeguarding architecture that shape daily production.
Standard control platform
ESA S840 W
Graphical programming and scalable axis management, confirmed against the final machine configuration.
Review CNC controls →
Positioning
Application-matched backgauge
X, R, Z1, Z2 and independent channels are selected from the flange geometry—not a generic package.
Compare backgauge axes →
Safeguarding
Point-of-operation review

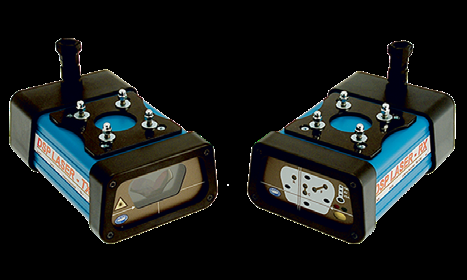

Laser guarding, access controls and the installed workcell are reviewed as one safeguarding system.
Explore safety technology →Project checkpoints
A visible path from drawing to first bend.
Each checkpoint closes a different source of project risk before the next stage begins.
- 01
Application locked
Confirm the governing material, part geometry and production target.
- 02
Configuration approved
Review the exact model, options, interfaces and commercial scope.
- 03
Pre-delivery review
Check machine identity, major functions, documentation and shipment readiness.
- 04
Site and inspection coordination
Align placement, utilities, guarding and applicable third-party evaluation.
- 05
Production handoff
Record startup, operator familiarization, sample work and remaining actions.
Clear compliance language
Coordination is not the same as certification.
BENDRYX coordinates available machine documentation and applicable third-party field evaluation for the final installed configuration. Certification or approval is determined by the relevant inspection body—not by a marketing statement.
Evaluation requirements depend on jurisdiction, facility and final installed configuration.
BENDRYX can support equipment and configuration records; the press brake itself is not represented as FDA-approved.
Warranty scope, exclusions, delivery assumptions and supplied options should be confirmed in the signed commercial documents.
Start the project record
Send the part. Build the evidence around it.
Upload a drawing or describe the governing bend. BENDRYX will use it to begin the application and configuration review.
